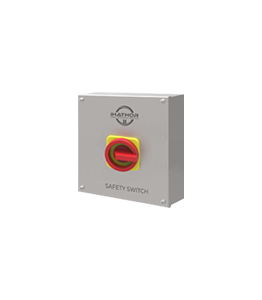

Switch Disconnector 100A - 125A

BKP SERIES

iHATHOR switch disconnectors available in a wide range of currents from 100A and 125A. BKP Series has been designed according to standard IEC/EN60947-3 for its use in low voltage civil and industrial installations and are certificated to UL 508 for use as manual motor controllers.

iHATHOR Switch Disconnector 100A - 125A · iHATHORiHATHOR

This product has the following certificates

  • Logo CE · iHATHOR
  • Logo IK10 · iHATHOR
  • Logo IP66 · iHATHOR
  • Logo UL NEMA 12 · iHATHOR
  • Logo UL NEMA 3R · iHATHOR
  • Logo UL NEMA 4X · iHATHOR
  • Logo 10 year anti-corrosion · iHATHOR

Description

iHATHOR switch disconnectors available in a wide range of currents from 100A and 125A. BKP Series has been designed according to standard IEC/EN60947-3 for its use in low voltage civil and industrial installations and are certificated to UL 508 for use as manual motor controllers.

iHATHOR is a full line of safety and isolation switches of indoor and outdoor applications (made in stainless steel AISI 304L). We design and manufacture every product ourselves in our own factories. Focused heavily on safety, iHATHOR’s switching device product line brings state-of-the art designs that can even be customized to fit your unique needs. iHATHOR switch disconnectors on-load, a large range for solving the different necessity of market.



Switch Disconnector 100A - 125A iHATHOR

Discover the advantages

Ready for installation
Compact design.
Possibilities in custom housing design.
Versatility.
Fast delivery time.
Custom designs available.
Quantity discount.

Regulations

  • IEC/EN 60947-3
  • IP66 Norm IEC EN 62208 and EN 60529.
  • Maximum IK10 resistance Norm IEC62208 and IEC 62262.
  • UE Directive of low voltage 2014/35/UE.
  • Materials intended to come into contact with food, CE 1935/2004.
  • Offhore, maritime grade IP66.
  • UL Standard(s) Safety: UL508A- Industrial Control Panels, CSA C22.2 No.14- Industrial Control Equipment.

Applications

iHATHOR switch with the electrical with safe in solar and wind renewable energy, offshore, maritime, power distribution, food industry, manufacturing machinery  and other general industries.
iHATHOR safety switches are reliable and provide safety to your property and your personnel in addition to providing:

  • Protection against overcurrent.
  • Protection against circuit overloads.
  • Protection against short circuiting.
  • Protection against heat-generated damage.

Safety switches are designed to interrupt the power in the event of a single fault in the circuit. Custom solutions projects for small and large series. iHATHOR is certified UL, Nema 4x.

Custom Made Solutions
We offer multiple solutions

Switch Disconnector 100A - 125A · iHATHOR
Do you need solutions?
2024 product catalogues
  • The most standard products are presented, options are available upon request.
  • Option multiple of switch, nº of poles, current, aux. contacts,...
  • Drills in base your needs.
  • Option of different supports.
  • Option of manufactured in different materials: stainless steel AISI 316L (enclosure maritime grade) or painted galvanized steel finish in RAL 7035 or another color.
  • Design on IP67 or IP68 box.
  • Possibility of Atex load switch.
Customers also bought:

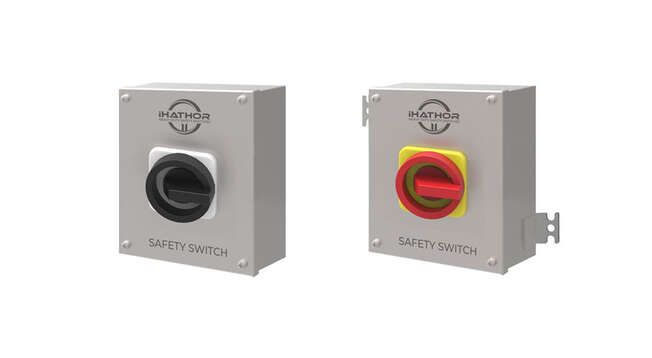

Switch Disconnector 20A - 25A - 40A · iHATHORiHATHOR
iHATHOR disconnectors available in 20A, 25A and 40A currents. BKP Series has been designed...
Safety Switch 63A - 80A · iHATHORiHATHOR
iHATHOR safety switch available in a wide range of currents from 63A and 80A. BKP Series has been...
Safety Switch 125A - 150A - 200A - 250A · iHATHORiHATHOR
Switch disconnectors on-load H0 Series, are available from 125A for 250A, versions under request on...
Switch Disconnector 315A - 400A · iHATHORiHATHOR
Disconnectors on-load H1 Series, are available from 315A for 400A, versions under request on order....
Switch Disconnector 100A - 125A · iHATHOR

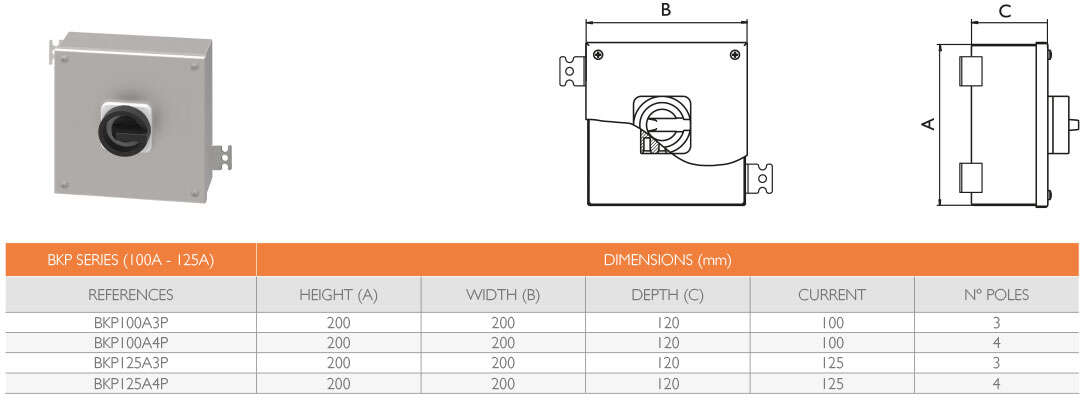

Sketches
